CNC glass drilling and milling machine with high technology. It can perfectly perform complicated working in short time, and the processed sheet is of high level which realized to obtain a CNC machine with smallest investment.

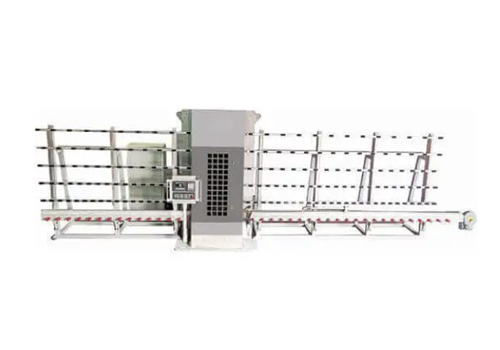

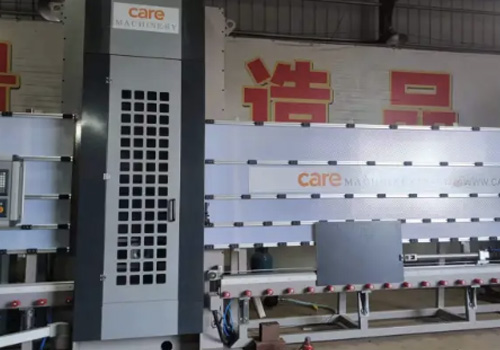

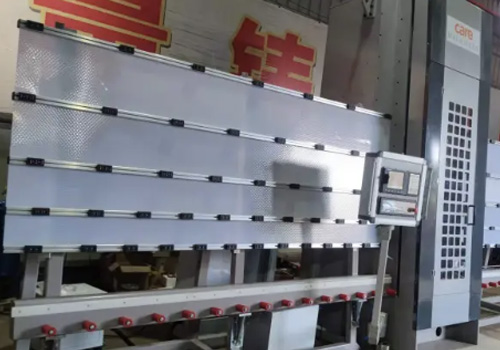

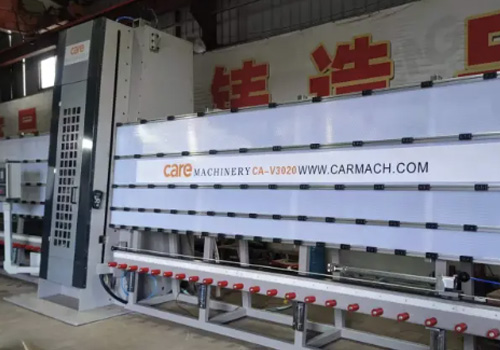

The Vertical CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control. So the shape is of precision and the processed sheet is of high quality. It is a CNC vertical drilling and milling machine to process simple and complex drawing and featured by the most advanced technology. It is a solution to the requirement on processing precision, high speed and ease operation.
The machine can automatically process complex drilling and milling functions on large flat glass. When the glass was loaded on the feeding rack, the machine begins to execute the prepared program on drilling, milling, etc.
| MODEL | BN-V3015 | BN-V3712 | BN-V3720 | BN-V4720 | BN-V4525 |
| Max Glass Size | 3000*1500mm | 3700*1200mm | 3700*2000mm | 4700*2000mm | 4500*2500mm |
| Min Glass Size | 500*500mm | 500*500mm | 500*500mm | 500*500mm | 500*500mm |
| Speed Of Spindle | 0-12000/Min | 0-12000/Min | 0-12000/Min | 0-12000/Min | 0-12000/Min |
| Total Power | 11KW | 11KW | 13KW | 13KW | 13KW |
| Spindle Power | 5.5KW | 5.5KW | 7.5KW | 7.5KW | 7.5KW |
| Air Compression | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Machine Weight | 5000KG | 5500kg | 6000kg | 6500kg | 7500kg |
| Machine Size | 8700*1700*3300mm | 9400*1900*3000mm | 9400*1900*3800mm | 10400*1900*3800mm | 10200*1900*4300mm |
| Glass Thickness | 4-30MM | 4-30mm | 4-30mm | 4-30mm | 4-30mm |
| Electricity Standard | 380V/50HZ | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Number of Axis | 3AXIS | 3Axis | 3Aixs | 3Axis | 3Aixs |
